Brand Name :
ShuangYi
Model Number :
SATA-C07M-C18P35A6-G4LH
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.26-0.40 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG

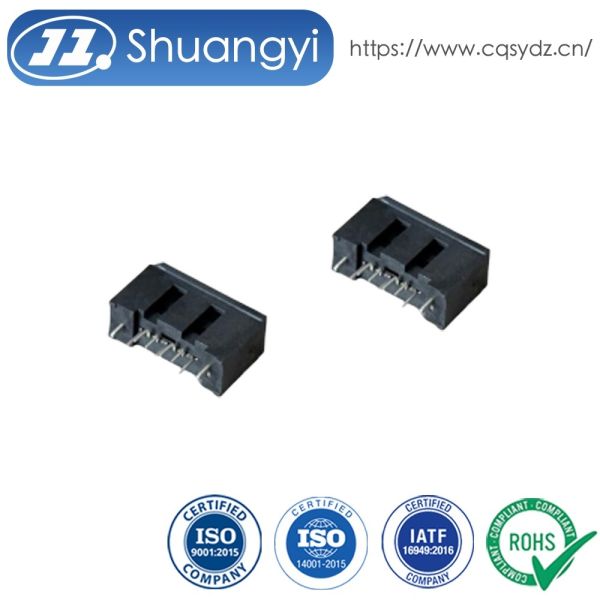

Product Type :
2.54mm PCB Female Connector
Function :
Board-level electrical / electronic signal connection
Pin count :
7 pins
Termination :
SMD solder tails
Housing material :
PBT or PA66, UL94V-0 Flame Retardant
Contact material :
Phosphor bronze or equivalent high-strength copper alloy
Contact plating :
Tin or selective gold over nickel, optimized for low contact resistance
Rated current :
Up to 1.5 A per contact (reference, application dependent)
Rated voltage :
Up to 30 V AC / DC (low-voltage signal use)
Insulation resistance :
≥ 1,000 MΩ at 500 V DC
Contact resistance :
≤ 30 mΩ (initial)
Dielectric strength :
300 V AC / minute
Mechanical durability :
≥ 500 mating cycles
Operating temperature :
−40 °C to +105 °C
PCB thickness reference :
Around 1.0 mm board edge design
RoHS/REACH :
Halogen-free, RoHS-compliant materials
Customization options :
Gold thickness, housing color, packaging, harness assembly
