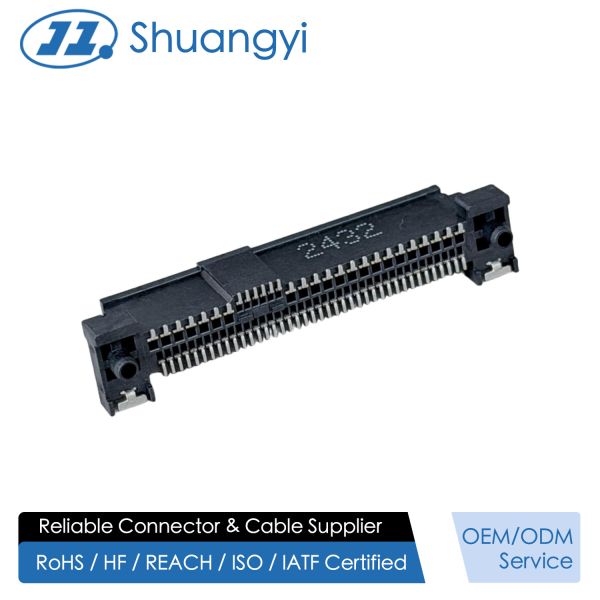

68Pin SAS Female SMT Type PCB Connector with 30u" Gold Plating – Reliable Signal Transmission Connector

Name: 68Pin SAS Female SMT Type PCB Connector with 30uquot Gold Plating Reliable Signal Transmission Connector
Brand: ShuangYi
Price: 1.1 USD

Wholesale 68Pin SAS Female SMT Type PCB Connector with 30u" Gold Plating – Reliable Signal Transmission Connector from china suppliers

Brand Name : ShuangYi

Model Number : SAS-C68F-06M3A6-01LH

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $1.1-1.8 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Housing Material : LCP G/F Black UL94V-0

Terminal Material : Phosphor Bronze (C5191-H) with Gold Plating (30μ" Au)

Mount Type : SMT Mount

Rated Current / Voltage : 1.5A @ 40VAC

Contact Resistance : ≤ 30 mΩ

Insulation Resistance : ≥ 1000 MΩ

Withstand Voltage : 500VAC / minute

Operating Temperature : -20°C ~ +85°C

Plating : Ni ≥ 50u'' (base), Au ≥ 30u'' (contact area), Tin ≥ 80u'' (solder area)

Mating Force : ≤ 59 N

Unmating Force : ≥ 12 N

Durability : Backplane: 500 cycles / Cable: 25 cycles

Salt Spray Time : 48H

Contact Now

The SAS 68Pin Female SMT Connector is designed for high-speed, stable signal transmission in enterprise-level servers, RAID systems, and data storage equipment. With 30 micro-inch gold plating on contact terminals and precision-engineered phosphor bronze materials, it guarantees excellent conductivity, corrosion resistance, and long-term reliability.

Manufactured by Dongguan Shuangzhuo Electronics Technology Co., Ltd., the connector is produced through fully automated stamping, injection molding, and electroplating processes. Our factory operates independent laboratories for plating thickness verification, electrical performance, and mechanical testing, ensuring every product meets international reliability and durability standards.

The SMT design allows for seamless automated PCB assembly, reducing space consumption and ensuring consistent soldering quality. OEM/ODM customization is available, including pin count, plating thickness, angle, and packaging options, to fit specific design requirements.

⚙️ Applications

Servers and RAID controller systems
Data storage and transmission modules
PCIe and SAS interface devices
Industrial automation control systems
Cloud computing and data centers
Communication equipment and embedded systems

⚠️ Notes

Avoid excessive soldering heat and mechanical stress to preserve gold plating integrity.
Store in a dry, dust-free environment with anti-static protection.
Ensure accurate alignment before PCB mounting to prevent terminal deformation.
Custom configurations available for specific signal transmission needs.

68Pin SAS Female SMT Type PCB Connector with 30u" Gold Plating – Reliable Signal Transmission Connector

Item	Specification
Product Type	SAS 68Pin Female 06 SMT Connector
Mounting Type	SMT (Surface Mount Technology)
Pitch	1.27mm
Contact Material	Phosphor Bronze (C5191-H)
Housing Material	LCP G/F Black UL94V-0
Plating	Gold 30u’’ on contact area, Nickel 50u’’ underlayer, Matte Tin 80u’’ on solder tail
Rated Current / Voltage	1.5A @ 40VAC
Contact Resistance	≤30mΩ
Insulation Resistance	≥1000MΩ (500VDC)
Withstand Voltage	500VAC / 1 minute
Mating Force	≤59N
Unmating Force	≥12N
Durability	500 mating cycles (EIA364-09)
Operating Temperature	-20°C ~ +85°C
Salt Spray Test	48 hours (gold-plated area)
Environmental Compliance	HF + RoHS 2.0
