Our PCIe 3.0 to 6.0 series connectors deliver ultra-high transmission rates up to 64 GT/s, ensuring superior signal integrity and stable performance for high-speed computing. Designed with high reliability, durability, and hot-plug capability, each connector undergoes rigorous testing in our automated production lines to guarantee consistent quality. We provide comprehensive OEM/ODM customization, covering both board-end and cable-end solutions. Widely used in AI servers, data centers, GPU accelerators, and industrial automation, our PCIe connectors enable secure, efficient, and high-bandwidth interconnections for next-generation systems. ShuangYi Precision — Powering Smarter Connections.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

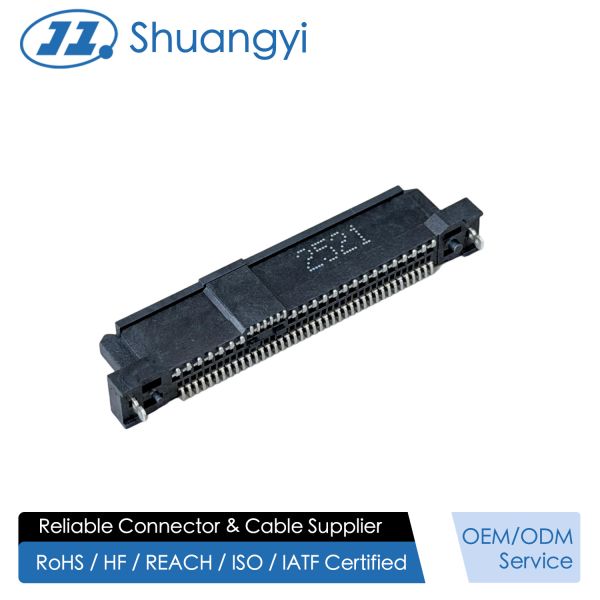

The SAS 68-Pin SMT Female Connector is designed for high-speed and high-integrity signal transmission in enterprise-level and industrial electronic systems.
Featuring 30μ" gold-plated terminals, nickel underplating, and UL94-V0 LCP housing, this connector delivers excellent conductivity, corrosion resistance, and long-term durability.
The surface-mount structure supports fully automated SMT assembly lines and ensures stable performance in compact PCB layouts. With 1.5A @ 40VAC, low contact resistance (≤30mΩ), and reliable mechanical engagement, this connector is ideal for servers, storage devices, automotive electronics, and industrial control applications requiring high data bandwidth and reliability.
| Product Type | SAS 68-Pin SMT Female Connector |
| Plating – Contact Area | 30µ" Gold (Au) |
| Nickel Underplating | ≥50µ" Nickel |
| Solder Area Plating | ≥80µ" Matte Tin |
| Housing Material | LCP, Glass-Fiber Reinforced, Black, UL94-V0 |
| Terminal Material | Phosphor Bronze C5191-H, t=0.25 mm |
| Operating Temperature | –20°C to +85°C |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥1000MΩ |
| Withstanding Voltage | 500VAC / 1 minute |
| Mating Force | ≤59N |
| Unmating Force | ≥12N |
| Durability | 500 cycles (EIA364-09 Standard) |
| Salt Spray Test | 48 hours (Gold Plated Area) |
| Environmental Compliance | HF + RoHS 2.0 |
| Production Marking | 2-digit year + 2-digit production week (white font) |
| Mounting Type | SMT Surface-Mount |
| Package Carrier Tape Spec | 410mm reel, with desiccant and sealed moisture bag |
| Recommended PCB Pitch | 0.50mm / 0.60mm mixed layout based on drawing |
Key Features
- 30μ" Gold-Plated Contact Terminals for superior signal integrity
- Robust SMT Design supporting automated reflow soldering
- High-Speed Data Transmission suitable for SAS interface systems
- Durable Housing Material using UL94-V0 flame-retardant LCP
- Strong Mechanical Performance: ≤59N insertion, ≥12N withdrawal
- Reliable in Harsh Environments: –20°C to +85°C operation
- RoHS 2.0 + Halogen-Free Compliant
- Customization Available: pitch, terminal structure, plating thickness
⚙️ Applications
1. Server & Storage Equipment
SAS HDD/SSD
RAID expansion cards
Storage backplanes
Data center servers
2. Communication & Networking Devices
Routers and switches
Edge computing devices
Telecom base stations
3. Industrial & Automation Systems
PLC controllers
Industrial IPC motherboards
Motion control modules
4. Automotive Electronics
ADAS data logging
Vehicle storage modules
Smart cockpit controllers
5. High-Density PCB Designs
Compact electronic systems
Multi-board interconnection modules
⚠️ Notes
- Follow recommended SMT reflow profiles to prevent LCP deformation.
- Keep contact areas clean and free of contamination before mating.
- Use ESD protection when handling sensitive terminals.
- Ensure PCB layout follows drawing specifications to prevent misalignment.
- Avoid excessive force during insertion to protect terminal structure.
- Do not pair gold-plated connectors with oxidized contacts.
- Store reels in sealed moisture-proof packaging with desiccant.
- Maintain ambient humidity and temperature per packaging instructions.
