ARGB 24Pin ATX Power Cable Connector Extension – White Sleeved Modular PSU / Motherboard Cable

Name: ARGB 24Pin ATX Power Cable Connector Extension White Sleeved Modular PSU Motherboard Cable
Brand: ShuangYi
Price: 1.44 USD

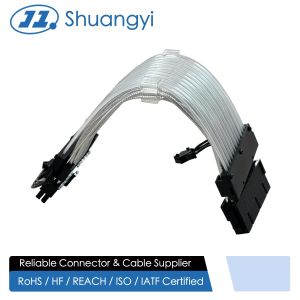

Wholesale ARGB 24Pin ATX Power Cable Connector Extension – White Sleeved Modular PSU / Motherboard Cable from china suppliers

Brand Name : ShuangYi

Model Number : Lighting ARGB 24PIN Extension Cable for MB L=250MM

Certification : RoHS / REACH / UL compliant

Place of Origin : China

MOQ : 1000

Price : $1.44-2.21 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : Electrical power cable connector harness

Connector Style : Male power connector to female power connector

Cable Type : 16AWG / 18AWG Tinned Copper Wire

Cable Length : Customizable (Standard 30cm / 50cm / 60cm)

Sleeve Material : High-density Braided Nylon Mesh

Rated Current : 8A–10A per pin

Rated Voltage : 300 V AC/DC

Contact Resistance : ≤10mΩ

Insulation Resistance : ≥1000MΩ

Operating Temperature : -20°C to +105°C

Flame Retardant Grade : UL94V-0

Application : GPU / PSU / Server / Industrial Power System

Contact Now

Product Description

This ARGB 24Pin ATX power connector extension cable combines reliable electrical performance with an eye-catching visual effect for high-end systems. The assembly routes multiple power wires through oxygen-free copper conductors and precision-formed power terminals, ensuring efficient current delivery from modular PSUs to the motherboard or server PCB.

On top of the basic power transmission function, a dedicated light guide bar and addressable RGB strip create smooth lighting across every pin row, delivering uniform illumination for tempered-glass gaming cases and showcase systems. The white braided sleeve keeps each wire cable neatly separated while enhancing the overall look of the build.

A standard 3-pin 5V ARGB or optional 4-pin connector allows direct synchronization with motherboard lighting software or external controllers, supporting multiple modes such as breathing, rainbow, static color, and music-reactive effects. Customization for cable length, connector type, pin layout, and sleeve color is available to fit different ATX / E-ATX / server platforms and OEM projects.

Product Type	ATX power cable connector with ARGB lighting
Connector A	24Pin ATX male power connector
Connector B	24Pin ATX female power connector
Extra Connector	3Pin 5V ARGB or 4Pin header (for lighting control)
Pin Pitch	4.20 mm power terminal pitch
Pin Count	24 pins
Wire Type	16AWG / 18AWG stranded tinned copper wire
Conductor	Oxygen-free copper, low resistance for stable power transmission
Insulation	UL-rated PVC or XLPE electronic wire insulation
Outer Sleeve	High-density white braided sleeve with transparent light guide bar
Rated Voltage	300 V AC/DC
Rated Current	Up to 8–10 A per circuit (depending on wire gauge)
Contact Material	Copper alloy terminals with tin or selective gold plating
Dielectric Strength	≥1500 VAC / 60 s
Insulation Resistance	≥1000 MΩ
Operating Temperature	-20 °C to +105 °C
Flammability Class	Materials compatible with UL94V-0
Cable Length	Standard 30–40 cm, customizable on request
Color	White sleeved cable, addressable RGB lighting effects
Compliance	RoHS / REACH compliant
Application	Gaming PC, modded case builds, workstation, server / PCB power connector customization

Applications

Custom gaming PC and e-sports rigs requiring illuminated ATX power connector cables

High-end workstation and creator systems with side-window chassis

Showcase demo platforms, retail display PCs and exhibition builds

Server or industrial systems where clear cable routing and status indication via lighting are desired

Customized electronic systems and PCB power boards using 24Pin style power connectors with visual identification

Precautions

Verify that the 24Pin ATX pin-out of the PSU and motherboard is compatible before installation; incorrect mapping of male / female connectors can damage electronic components.

Connect the ARGB plug to a 5V addressable header only; do not connect to a 12V RGB port. Check polarity before powering on.

Avoid twisting or sharply bending the cable close to the connector housings and light guide, to prevent damage to internal wires and LED strip.

Keep the assembly away from sharp edges, heat sinks and fan blades, and secure it with clips or cable combs to reduce stress on the terminals.

For projects involving mixed signal and power wiring, different pitches, or integration with other automotive / server / PCB harnesses, OEM/ODM customization can be provided.
