Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

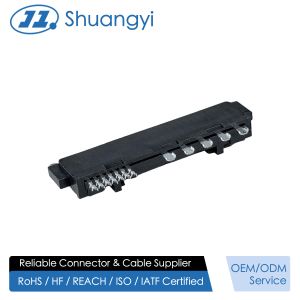

This SATA 22-Pin Female Connector is designed for high-reliability signal and power transmission in compact PCB layouts.
Featuring a 15P reverse-cup terminal structure, 180° SMT mounting, and gold-plated G/F contact surfaces, the connector delivers excellent conductivity, low contact resistance, and long-term durability in demanding electronic environments.
The housing is made from UL94-V0 flame-retardant PBT with 20% glass fiber, ensuring dimensional stability and heat resistance during SMT soldering. High-precision phosphor-bronze terminals provide consistent mechanical strength, achieving ≥0.8 kgf retention force and ≥25 N unmating force without deformation.
This connector is widely used in servers, automotive electronics, industrial control systems, data-storage devices, embedded PCs, and customized PCB solutions.
Its robust mechanical performance and gold-plating make it ideal for high-frequency, high-reliability interconnection applications.
| Product Type | SATA 22-Pin Female Connector |
| Terminal Type | 15P Reverse Cup Type, No-Insert Slot |
| Pitch of Housing | 1.27 mm |
| Rated Current | 1.5A @ 40VAC |
| Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Withstand Voltage | 500 VAC / 1 minute |
| Terminal Plating | Ni ≥ 50 u” (base) + Au G/F on contact area |
| Solder/Crimp Area Plating | Tin ≥ 80 u” |
| Mating Force | ≤45 N |
| Removal Force | ≥25 N static test, no damage |
| Single Pin Retention Force | ≥0.8 kgf |
| Housing Material | PBT 20% G/F, UL94-V0 (Black) |
| Terminal Material | Phosphor Bronze C5191-H, T=0.25 |
| Operating Temperature | –20°C to +85°C |
| Compliance | RoHS 2.0 |
| Customization Options | Pin configuration / plating / housing color / packaging |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
