Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

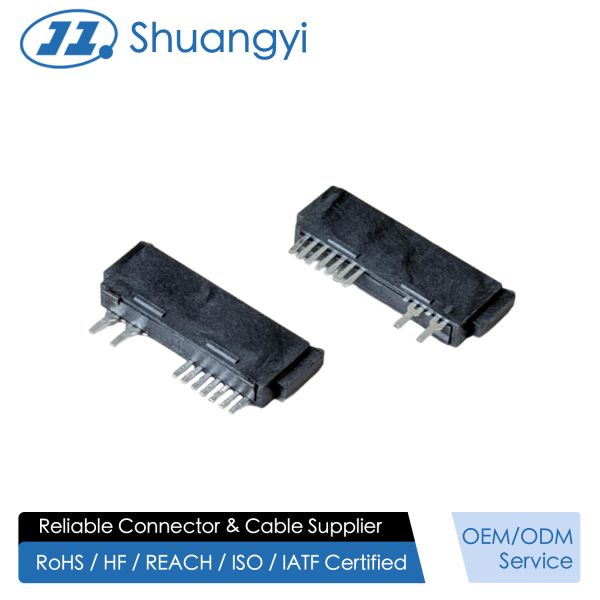

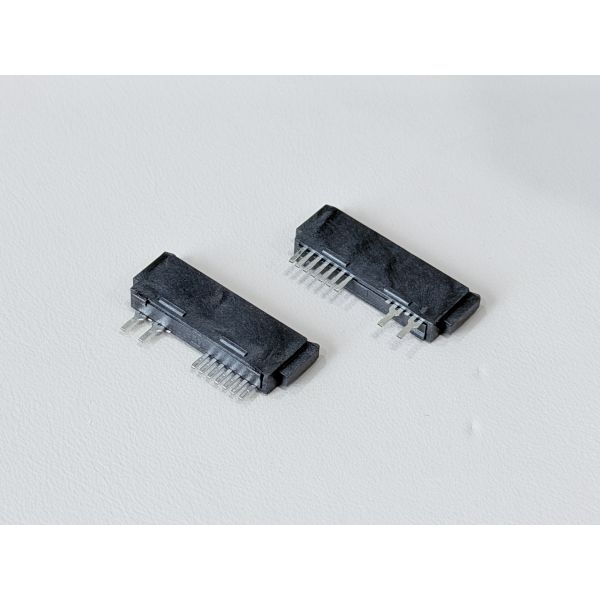

This SATA 13P 180° solder wire female connector is designed for compact, high-reliability wire cable assemblies that need stable signal and power transmission. With a 1.27 mm pitch and 13-pin SATA interface, it supports combined data and power lines in HDD/SSD links, server backplanes, industrial controllers and other electronic systems where space is limited and electrical performance is critical.
The terminals are stamped from phosphor bronze C5191-H (0.25 mm thick) to provide excellent spring properties and conductivity. A layered plating structure is used: 50 µ" nickel underplate for corrosion resistance, gold-flash (G/F) on the contact area to keep contact resistance low for high-speed electrical signals, and 80 µ" matte tin on the solder area for strong, reliable bonding to the wire. The connector is rated at 1.5 A @ 40 VAC per contact, with contact resistance ≤30 mΩ, insulation resistance ≥1000 MΩ, and a dielectric withstand voltage of 500 VAC per minute, ensuring safe operation in demanding electrical environments.
Mechanically, the 180° in-line solder-wire design simplifies cable routing and supports controlled mating and unmating forces, while each pin achieves a retention force of at least 0.8 kgf to resist vibration and pull-out in wire harness applications. The black glass-filled PBT housing (UL94-V0) offers good heat resistance, dimensional stability and flame retardance, making the connector suitable for automated soldering and cable assembly.
Using RoHS 2.0 compliant materials and supporting customization of wire gauge, cable length and harness layout, this SATA 13Pin 180° solder wire female connector is an ideal choice for OEMs developing server, storage, automotive and industrial wire cable solutions that require a reliable electrical connector for signal and power transmission.
| Product Type | SATA 13P 180° solder-wire female connector, gold-flash G/F |
| Interface Series | SATA series, 13-pin female interface |
| Number of Positions | 13 pins |
| Pitch of Housing | 1.27 mm |
| Termination Style | 180° solder way of terminal with wire (solder wire connection) |
| Application Type | Electrical / electronic wire cable & harness connector for signal and power |
| Rated Current / Voltage | 1.5 A @ 40 VAC |
| Operating Temperature | –20 °C to +85 °C |
| Contact Resistance | ≤ 30 mΩ (Max) |
| Insulation Resistance | ≥ 1000 MΩ (Min) |
| Withstand Voltage | 500 VAC / minute |
| Mating Force | ≤ 45 N Max |
| Unmating Force | ≥ 15 N (1–5 cycles), ≥ 10 N (6–50 cycles) |
| Single Pin Retention Force | ≥ 0.8 kgf per pin |
| Terminal Base Material | Phosphor Bronze C5191-H, t = 0.25 mm |
| Terminal Plating – Under | Ni 50 µ" Min plated over terminal |
| Plating – Contact Area | Au G/F plated on contact area |
| Plating – Solder Area | Matte Sn 80 µ" Min plated on solder area |
| Housing Material | PBT G/F Black UL94-V0 |
| Environmental Compliance | RoHS 2.0 compliant |
| Typical Uses | Server & storage cable, SATA signal / power wire harness, automotive & industrial electronic wiring |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
